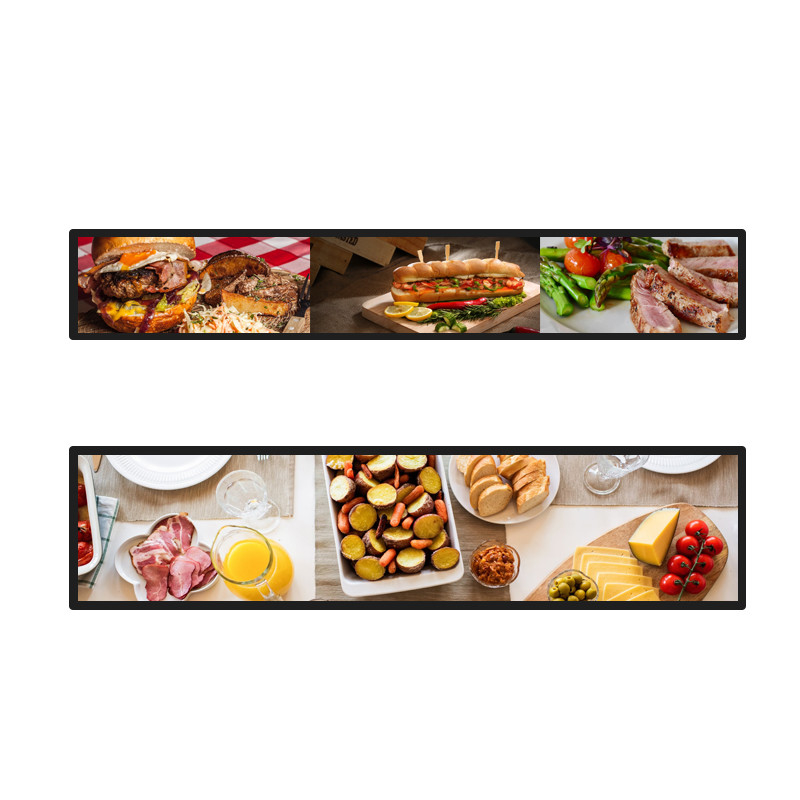

1920x1920 22 Inch Stretched Bar LCD Display For Supermarket
1920x1920 22 Inch Stretched Bar LCD Display For Supermarket
1920x1920 22 Inch Stretched Bar LCD Display For Supermarket

1920x1920 22 Inch Stretched Bar LCD Display For Supermarket

Product Details

Place of Origin: China

Brand Name: Smart Display

Certification: CE,FCC, Rohs. CB

Model Number: SSN-10

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Outer wooden box, middle carton, inner PE cotton

Delivery Time: 7-25

Payment Terms: TT

Supply Ability: 5000pcs/month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

1920x1920 Stretched Bar LCD Display

,

22 Inch Stretched Bar LCD Display

,

1920x1920 Stretched Bar LCD Monitor

Power Supply:
110-220V
Name:
Stretched LCD Display
Compatible HDMI Input/DVI:
Yes
Usage:
Indoor Advertising Transparent LCD Display
Lead Time:
7-10days
Logo:
Optional
Material:
Metal Screnn
Customized Service:
Yes
Brand:
Smart Display
Power Supply:
110-220V
Name:
Stretched LCD Display
Compatible HDMI Input/DVI:
Yes
Usage:
Indoor Advertising Transparent LCD Display
Lead Time:
7-10days
Logo:
Optional
Material:
Metal Screnn
Customized Service:
Yes
Brand:
Smart Display
Description
1920x1920 22 Inch Stretched Bar LCD Display For Supermarket

22 inch bar type lcd tft advertising display square screen stretch monitor for supermarket



Product Information
Panel info
Model No.
SD220
Display Outline Size(mm)
412.56*412.56*21.8
Display Area(mm)
394.56(H)*394.56(V)
Resolution
1920*1920
Brightness
500CD/㎡
Pixel Pitch
0.2055
Contract Ratio
1000:1
View Angle
89/89/89/89 U/D/L/R
System
CPU
S700,Quad-core A53 SMP4,28nm
Operating System
Android 5.1.1
RAM
1G
ROM
8G (NAND Flash)
Interface
Micro USB
USB OTG
Mini RJ45
1Pcs
USB
1Pcs
Card Socket
PUSH-PUSH TF Card Socket
Internet
Wi-Fi
2.4G+5G
LAN
100M(Mini RJ45)
BLE
Ble V4.2 of 1, 2 and 3 Mbps
Media play
Video Format
AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP,DAT, VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS etc; S700 support H.265(HEVC)2160P
30fps
Audio Format
OGG, APE, FLAC, WAV, AMR, AIFF, MPC.Support multiple Sound Effect
Picture Format
JPG,JPEG,BMP,GIF,PNG , etc.maximum resolution to 30000*30000；
Other Parameters
Power
36W
VESA
Support wall mount(200*200mm)
Operating Temperature
0℃~50℃
OSD Language
Multilingual OSD operation
Wireless Display System
CMS, Windows





Screen Size
23 ''
35 ''
47 ''




Panel Info
Display Outline Size
597*60*16 mm
891*60*15 mm
1209*62*14 mm
Display Area(mm)
585(W) × 48(H)
878(W) ×48(H)
1196(W) × 49 (H)
Aspect Ratio
<3:1
<3:1
<3:1
Resolution
1920X158
2880X158
3840X160
Brightness
400cd/m2
500cd/m2
500cd/m2
Contract Ratio
3000:1
3000:1
1000:1
View Angle
85/85/85/85


Android Version
Model No.
BA23WR
BA35WR
BA47WR
Operating System
Android OS
RAM
1G
2G
2G
Flash
8G (NAND Flash)
I/O Port
Micro USB/TF card slot
Wi-Fi
802.11b/g/n
Monitor Version
Model No.
BD23WR
BD35WR
BD47WR
Interface
HDMI-IN



Features:



1, High contrast, high brightness, greatly improving the layering of the picture, and better performance of details, wide color range.


2, Sync play or play as a video wall.


3, Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.


4, Support WIFI/LAN,3G/4G(optional).


5, Optional CMS software for content remote management.


Product Usages:



Stretched bar LCD display design for bus, metro, airport and other transportation, shopping mall and retail shop, replacement of the traditional paper display.
